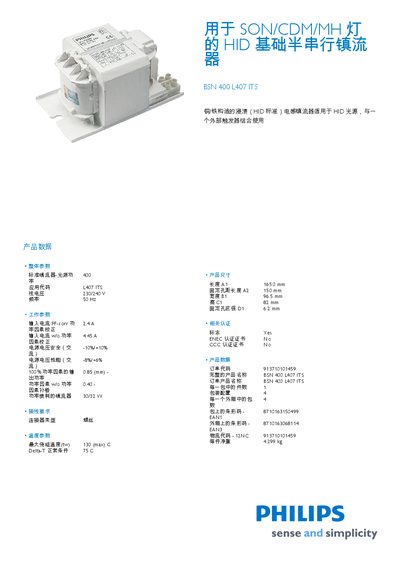

The BSN 400 L407 ITS is a HID basic half-series ballast for SON/CDM/MH lamps. It uses a copper/iron construction immersed (HID standard) inductor ballast and is used in conjunction with an external trigger.
This manual provides the installation and safety guidelines for the Philips BSN 400 L407 ITS high‑intensity discharge (HID) ballast. It lists overall and operating parameters, wiring requirements, temperature limits and packaging details.
Key specifications such as input voltage, frequency, power, power factor, dimensions and weight are included, along with recommended installation clearances and handling instructions. This manual is written in Chinese.
| Input voltage | 230‑240 V |
|---|---|
| Minimum power factor | 0.85 |
| Length (A1) | 165.0 mm |
| Width (A2) | 150 mm |
| Height (B1) | 96.5 mm |
| Depth (C1) | 82 mm |
| Mounting hole diameter (D1) | 6.2 mm |
| Maximum ambient temperature | 130 °C (max) |
| Weight per unit | 4.299 kg |
The ballast operates on an input voltage of approximately 230‑240 V.
The dimensions are A1 165.0 mm, A2 150 mm, B1 96.5 mm, C1 82 mm, and a mounting hole diameter D1 6.2 mm.
