The auxiliary capacitor is an AC capacitor designed for separately correcting the power factor of transformers and magnetic ballasts in discharge lamps (such as fluorescent lamps, halogen and ceramic metal halide lamps, high-pressure mercury lamps and sodium lamps) at mains line frequencies of 50 or 60Hz. This enhances the power factor of the lamp, with cosφ exceeding 0.85.

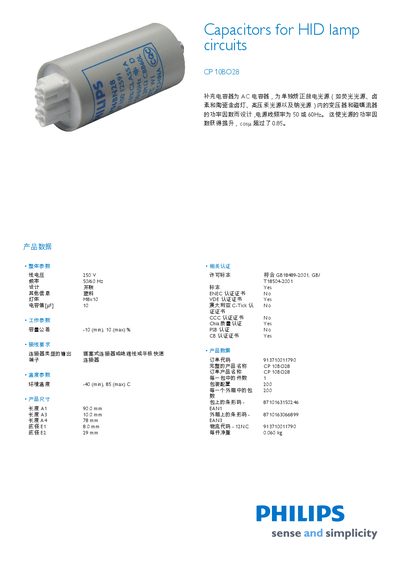

The CP 10BO28 capacitor is designed for HID lamp circuits, supporting power factor correction and operation at 50 Hz or 60 Hz. It complies with standards such as GB18489‑2001 and ENEC, and includes certification information.
Key specifications include a rated voltage of 250 V, tolerance of ±10 %, operating temperature range from –40 °C to 85 °C, and detailed mechanical dimensions. Packaging details and barcodes are also listed for logistics. This manual is written in Chinese.
| Rated Frequency | 50/60 Hz |
|---|---|
| Capacitance Tolerance | -10% to +10% |
| Operating Temperature Range | -40 °C to 85 °C |
| Weight per Piece | 0.060 kg |
| Packaging Quantity per Box | 200 |
It can operate from –40 °C to 85 °C.
The capacitor measures 90.0 mm in height, 10.0 mm in width, 78 mm in depth, with diameters of 8.0 mm and 29 mm.
