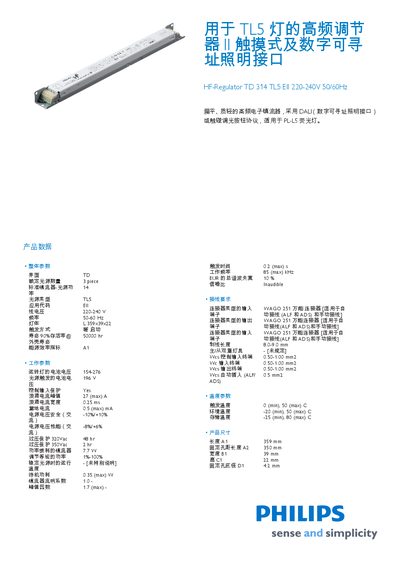

HF-R TD 314 TL5 EII 220-240V 50/60Hz is a flat, lightweight high-frequency electronic ballast that uses DALI (digital addressable lighting interface) or touch dimming button protocol for PL-L5 fluorescent lamps.
The HF‑RTD 314 TL5 is a high‑frequency electronic ballast designed for TL5 fluorescent lamps, supporting both DALI (Digital Addressable Lighting Interface) and touch‑dim control protocols. It operates on 220‑240 V AC at 50‑60 Hz and can drive up to three TL5 lamps.
The device complies with multiple safety and EMC standards (EN 55015, EN 55022, IEC 61347‑2‑3, IEC 60598‑2‑22, etc.), and its dimensions are 359 mm × 39 mm × 22 mm. Electrical parameters include a maximum surge current of 27 A, trigger time of 0.2 s, and operating temperature range from –20 °C to 50 °C. This manual is written in Chinese.
| Input Voltage | 220‑240 V |
|---|---|
| Frequency | 50‑60 Hz |
| Number of Lamps | 3 |
| Lamp Size | 359 mm × 39 mm × 22 mm |
| Lamp Lifetime | 50 000 h |
| Surge Current Peak | 27 A (max) |
| Leakage Current | 0.5 mA (max) |
| Over‑voltage Protection | 320 Yac / 350 Yac |
| Trigger Time | 0.2 s (max) |
| Working Frequency | 85 kHz (max) |
| Trigger Temperature Range | 0 °C – 50 °C |
| Operating Temperature Range | -20 °C – 50 °C |
| Storage Temperature Range | -25 °C – 80 °C |
The regulator operates on an input voltage of 220‑240 V AC.
The device can drive up to three TL5 lamps.
The maximum trigger time is 0.2 seconds.
