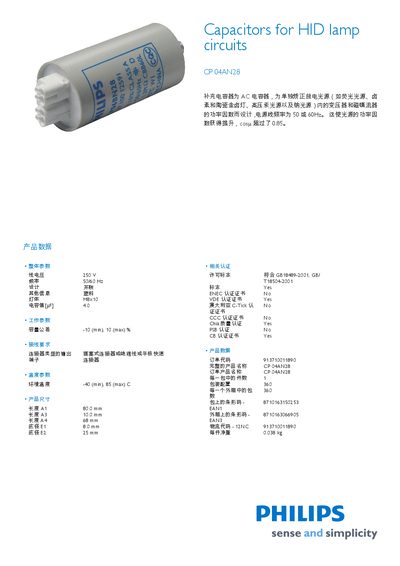

The CP 04AN28 supplementary capacitor is an AC capacitor designed for the single correction of the power factor of transformers and magnetic ballasts in discharge light sources such as fluorescent lamps, halogen and ceramic metal halide lamps, high-pressure mercury lamps and sodium lamps, with mains line frequencies of 50 or 60Hz. This achieves a boost in the power factor of the light source with a cosμ in excess of 0.85.
The CP04AN28 capacitor is intended for use in HID lamp circuits, such as high‑intensity discharge lamps, metal‑halide lamps, and other high‑pressure light sources. It provides power factor correction and operates at the standard line frequencies.
The component complies with several safety standards (ENEC, VDE, etc.), is supplied in packs of 360 units, and carries the part number 913710011890. Packaging dimensions and weight are also specified. This manual is written in Chinese.
| Rated Frequency | 50760 Hz |
|---|---|
| Capacitance Tolerance | -10% to +10% |
| Operating Temperature Range | -40°C to 85°C |
| Packaging Quantity per Box | 360 |
| Net Weight per Unit | 0.038 kg |
| Part Number | 913710011890 |
The part number is 913710011890.
It can operate from -40 °C to 85 °C.
Each outer box contains 360 units.
