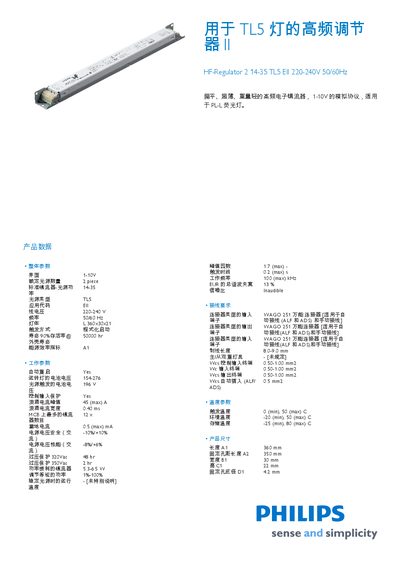

This document describes the features and characteristics of the HF-Regulator 2 14-35 TL5 EII 220-240V 50/60Hz. This regulator is a flat, slim, and lightweight high-frequency electronic ballast, suitable for TL5 and PL-L fluorescent lamps. It supports the 1-10V analog protocol. It features automatic restart, control of multiple light sources, overvoltage protection, and surge current protection.
The HF-R2 is a flat, ultra‑thin, lightweight high‑frequency electronic ballast designed for TL5 fluorescent lamps. It operates on 220‑240 V AC at 50/60 Hz and supports a lamp power range of 14‑35 W.
The document lists detailed product data, wiring requirements, dimensions, and a full set of certifications (EN, IEC, ISO, etc.), as well as lifetime and performance parameters for reliable installation and operation. This manual is written in Chinese.
| Input Voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Lamp Compatibility | TL5 fluorescent lamps |
| Lamp Lifetime (90% survival) | 50 000 h |
| Surge Current Peak | 0.5 mA (max) |
| Over‑voltage Protection | 320 Yac / 350 Yac |
The regulator operates on an input voltage of 220‑240 V.
The lamp lifetime is specified as 50 000 hours (90 % survival rate).
