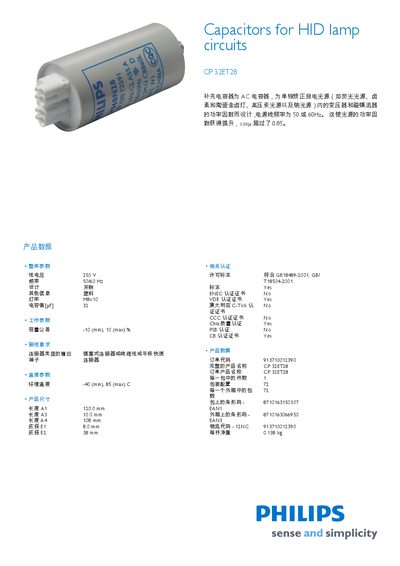

The CP 32ET28 supplementary capacitor is an AC capacitor designed to individually correct the power factor of transformers and magnetic ballasts within discharge lamps (such as fluorescent lamps, halogen and ceramic metal halide lamps, high pressure mercury lamps and sodium lamps) where the mains frequency is 50 or 60Hz. This provides an improvement in the power factor of the luminaire, cosφ exceeding 0.85.
The Philips CP32ET28 capacitor is designed for HID lamp circuits, providing a rated voltage of 250 V and operating at 50/60 Hz. It features a capacitance tolerance of ±10 % and can operate in temperatures from –40 °C to +85 °C.
The component dimensions are 120 mm × 10 mm × 108 mm × 8 mm × 38 mm, and it is supplied in single‑unit packaging with a net weight of 0.138 kg per piece. Compliance markings include GB18489‑2001, ENEC, VDE and other relevant standards. This manual is written in Chinese.
| Rated Frequency | 50/60 Hz |
|---|---|
| Capacitance Tolerance | ±10 % |
| Operating Temperature Range | -40 °C to +85 °C |
| Length (A1) | 120.0 mm |
| Net Weight per Unit | 0.138 kg |
It can operate from –40 °C to +85 °C.
Each package contains one capacitor.
The model number is CP32ET28.
