The BSN 100 L300 I is a copper/iron impregnated (HID standard) inductive ballast for use with HID lamps in combination with an external trigger.

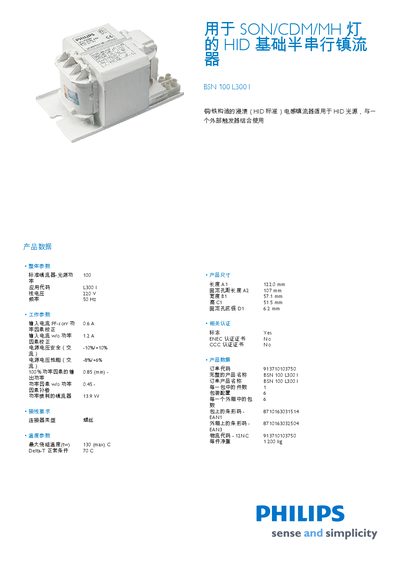

This Philips datasheet presents the key parameters of the BSN 100 L300 I HID lamp, including electrical characteristics, temperature limits, and mechanical dimensions. It also lists packaging details and bar‑code identifiers for logistics.
The document contains overall parameters such as voltage, frequency, current, power factor and power consumption, as well as temperature specifications, maximum operating temperature, and weight. Mechanical dimensions and connector requirements are also provided for installation and integration. This manual is written in Chinese.
| Minimum Power Factor | 0.85 |
|---|---|
| Maximum Temperature | 130 °C |
| Weight | 1.200 kg |
| Length | 122.0 mm |
The minimum power factor is 0.85.
The lamp measures 122.0 mm × 107 mm × 57.1 mm with a diameter of 51.5 mm and a mounting hole diameter of 6.2 mm.
