BSN 150 L301 ITS is a copper/iron construction, impregnated (HID standard) inductor ballast for HID light sources, in combination with an external trigger. It features 150 luminous power, line voltage 220 V and frequency 60 Hz.

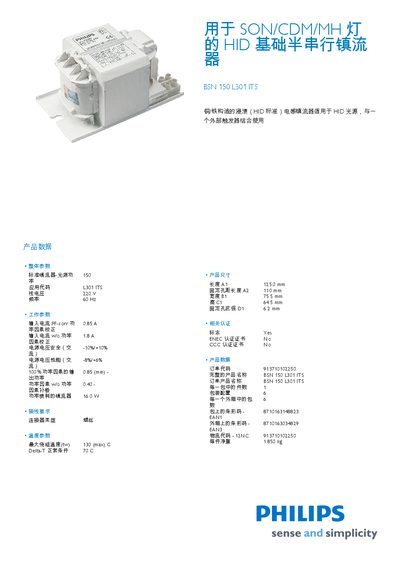

This manual describes the Philips BSN 150 L301 ITS HID ballast, covering overall parameters, operating settings, and safety information. It includes electrical specifications such as voltage, frequency, current, and power consumption, as well as power‑factor data.
The document also lists mechanical dimensions, wiring requirements, temperature limits, and packaging details. Reference numbers, barcodes, and logistics information are provided for inventory and shipping purposes. This manual is written in Chinese.
| Power Factor (min) | 0.85 |
|---|---|
| Dimensions (A1) | 125.0 mm |
| Dimensions (A2) | 110 mm |
| Dimensions (B1) | 75.5 mm |
| Dimensions (C1) | 64.5 mm |
| Dimensions (D1) | 6.2 mm |
| Weight | 1.850 kg |
