The BSN 100 L300 ITS is an inductive choke ballast designed for use with HID light sources. It features a PF-corr function to improve power factor and reduce power consumption. The ballast also has a high operating efficiency, which helps to improve the overall energy efficiency of the lighting system.
The Philips BSN 100 L300 ITS is a HID lighting fixture with a rated input of 220 V at 50 Hz and a maximum power consumption of 13.9 W. It operates with a power factor of at least 0.85 and includes safety features for AC operation.

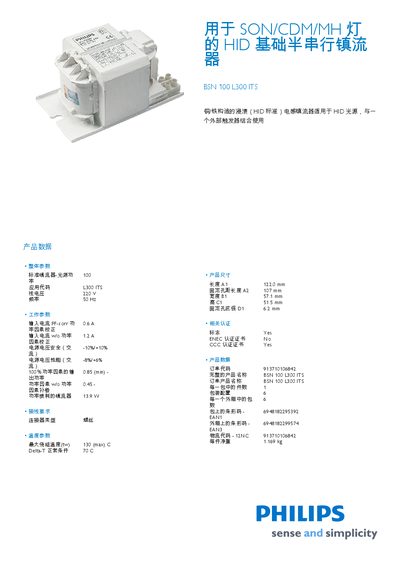

Key dimensions are A1 122.0 mm, A2 107 mm, B1 57.1 mm, C1 51.5 mm, and a fixed‑hole diameter D1 6.2 mm. The unit weighs 1.169 kg and is packaged six per box with corresponding barcodes for logistics. This manual is written in Chinese.
| Power factor (minimum) | 0.85 |
|---|---|
| Maximum temperature rise | 130 °C (max) |
| Dimension A1 (length) | 122.0 mm |
| Dimension A2 (hole spacing) | 107 mm |
| Dimension B1 | 57.1 mm |
| Dimension C1 (height) | 51.5 mm |
| Dimension D1 (hole diameter) | 6.2 mm |
| Weight per unit | 1.169 kg |
The fixture operates on 220 V at 50 Hz.
