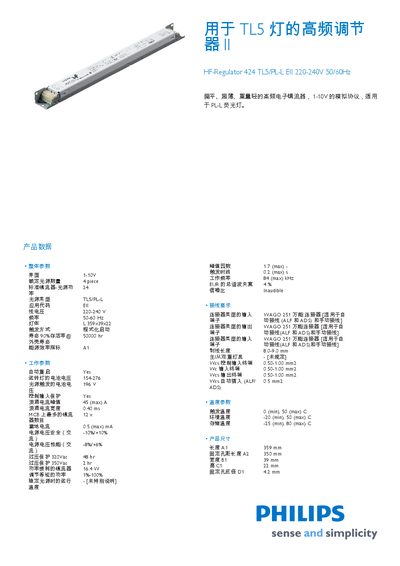

This document describes the features and characteristics of the high-frequency regulator II HF-Regulator 424 TL5/PL-L EII 220-240V 50/60Hz for TL5 lamps, including its flat, ultra-thin, lightweight design, suitability for PL-L fluorescent lamps, and 1-10V analog protocol.
The document describes the Philips HF‑R 424 TLS/PL‑L EI high‑frequency electronic ballast designed for TL5 fluorescent lamps. It includes product data, overall parameters, wiring requirements, and certification information.
Key technical details such as input voltage, control voltage range, maximum load current, trigger time, lamp life, dimensions, temperature limits, and applicable safety and EMC standards are listed. The datasheet also notes packaging, environmental standards, and compliance marks. This manual is written in Chinese.
| Input voltage | 220‑240 V, 50‑60 Hz |
|---|---|
| Control voltage range | 1‑10 V |
| Maximum load current | 45 A (max) |
| Lamp life (90% survival) | 50 000 h |
| Dimensions (L×W×H) | 359 mm × 39 mm × 22 mm |
| Operating temperature range | -20 °C to 50 °C |
| EMC certification | EN 55015, EN 55022 |
The regulator operates on 220‑240 V AC at 50‑60 Hz.
It accepts a control voltage between 1 V and 10 V.
The maximum load current is 45 A.
The product complies with EN 55015 and EN 55022.
