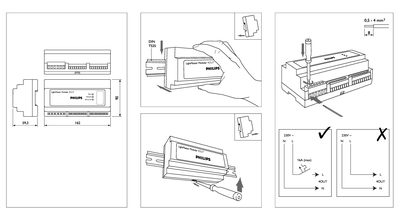

This document is the installation instructions for LRC5423 Lightmaster Modular 4-Out Controller.
The Philips LRC5423 Lightmaster Modular 4‑Out Controller is a lighting control unit designed for 230 V AC operation at 50/60 Hz. It provides up to four independent outputs, each capable of delivering a 0‑10 V signal at up to 25 mA and a maximum current of 5 A.
The datasheet includes installation instructions in multiple languages, environmental limits (5 °C to 55 °C, 20‑90 % RH), and physical data such as a weight of 0.54 kg. The product is manufactured in the EU and complies with the listed specifications.
| Input voltage | 230 V AC, 50/60 Hz |
|---|---|
| Maximum output current | 5 A |
| Output voltage range | 1‑10 V @ 25 mA max |
| Maximum operating temperature | 55 °C |
The model number is LRC5423.
It can supply up to 5 A per output.
