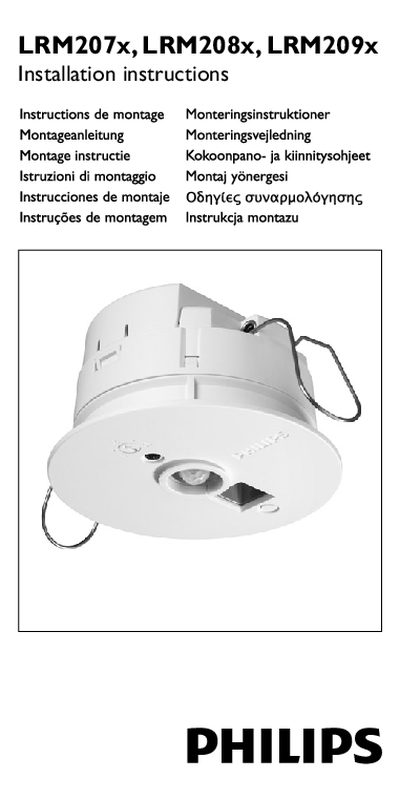

Installation instructions for LRM20xx series products
This guide provides step‑by‑step instructions for installing the Philips LRM207x, LRM208x, and LRM209x lighting control modules. It includes dimensions, optional ceiling box options, and required cable sets for proper wiring.
Technical details such as weight, operating temperature range, humidity tolerance, and IP rating are listed, along with connector types and mounting height recommendations to ensure correct and safe installation.
| Dimensions | 50 mm × 95 mm × 80 mm |
|---|---|
| Optional ceiling box | LRH2070 |
| Connector type | 7‑pole STELVIO plug |
| Weight | 0.2 kg |
| Operating temperature range | 5 °C – 50 °C |
| Relative humidity range | 20 % – 85 % |
The module measures 50 mm × 95 mm × 80 mm.
Yes, the optional ceiling box part number is LRH2070.
The cable sets use a 7‑pole STELVIO plug.
