The document provides installation instructions and technical specifications for LightMaster Modular 4SI product.

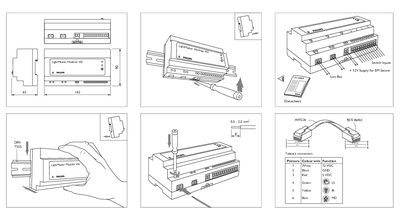

The guide provides wiring details for the LightMaster Modular 4SI Unit, including pin assignments (White = 12 VDC, Black = GND, Red = 5 VDC, etc.) and the required AWG 26 R12 cable. It also describes the use of Wago connectors, strain‑relief fittings, and the need for a cable tie to secure the cable.
Environmental limits are listed (operating temperature –5 °C to 55 °C, IP20 protection, weight 0.5 kg). References to the full datasheet and Philips lighting‑controls website are included for further technical information.
| Cable gauge | AWG 26 R12 |
|---|---|
| Operating temperature (max) | 55 °C |
The unit requires AWG 26 R12 cable.
Pin 1 = White 12 VDC, Pin 2 = Black GND, Pin 3 = Red 5 VDC, Pin 4 = Green & Ls, Pin 5 = Yellow IR, Pin 6 = Blue MD.
A cable tie must be included to secure the cable, and strain‑relief fittings should be used.
