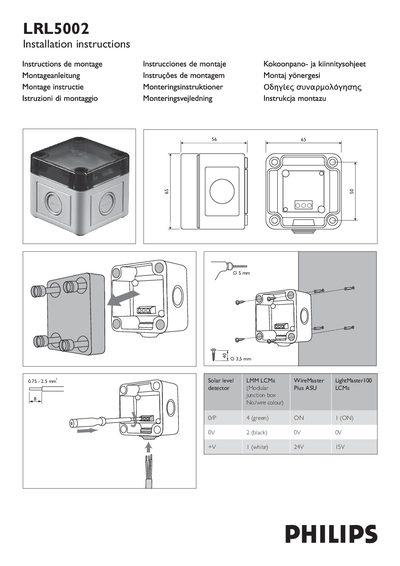

This instruction provides installation instructions for LRL5002
This document provides step‑by‑step installation instructions for the Philips LRL5002 solar level detector. It includes wiring details, colour codes and connection points for the modular junction box.
The guide also lists the environmental specifications such as operating temperature range (‑15 °C to 50 °C) and the IP65 ingress protection rating, ensuring proper performance in outdoor conditions.
| Operating temperature (max) | 50 °C |
|---|---|
| Operating temperature (min) | -15 °C |
| Supply voltage (24V line) | 24 V |
| Wire colour code – green | ON |
| Wire colour code – black | OV |
| Wire colour code – white | 24V |
Green wire is ON, black wire is OV, and white wire carries 24 V.
