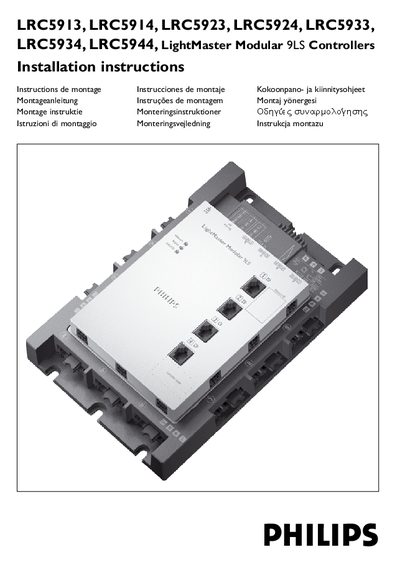

PHILIPS LRC5913 LRC5914 LRC5923 LRC5924 LRC5933 LRC5934 LRC5944 LightMaster Modular 9LS Controllers installation operating instructions

LightMaster Modular 9LS Controllers Installation instructions, describes the installation instructions of LightMaster Modular 9LS Controllers

Brand: Philips
Category: Other
Document type: Installation Guide
Language: English
Pages: 12
File format: PDF
File size: 1.9 MB
Published: 17 March, 2012
Updated: 30 September, 2023
MD5 checksum: C28E0C6521C7F37E12662B9C7D0CD140
PDF: PHILIPS LRC5913 LRC5914 LRC5923 LRC5924 LRC5933 LRC5934 LRC5944 LightMaster Modular 9LS Controllers installation operating instructions PDF

About this manual

This document provides step‑by‑step installation instructions for Philips LightMaster Modular 9LS Controllers covering models LRC5913, LRC5914, LRC5923, LRC5924, LRC5933, LRC5934 and LRC5944. It includes wiring diagrams, connector pinouts, maximum cable‑length recommendations, and mounting guidelines.

Key technical details such as allowable cable lengths (35 m per line, 125 m total), temperature operating range (5 °C – 55 °C), and environmental protection (IP20) are listed, along with connector types (RJ‑12, Telejack) and colour‑coded wiring assignments.

What's inside

Installation Overview
Cable Length Limits
Connector Pinouts
Mounting Guidelines
Electrical Connections
Environmental Specifications

Specifications

Maximum cable length per line	35 m
Maximum total cable length	125 m
Maximum operating temperature	55 °C

Frequently asked questions

What is the maximum cable length for the controllers?

Each line can be up to 35 m long, with a total of up to 125 m for all three lines combined.
