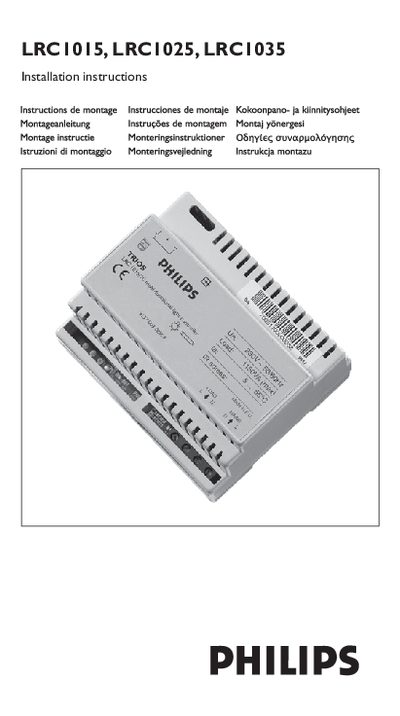

This document is the installation instructions for LRC1015, LRC1025 and LRC1035
The manual provides step‑by‑step installation guidance for Philips LRC1015, LRC1025 and LRC1035 lighting control devices, including wiring diagrams, sensor connections, and configuration settings.
It also contains technical specifications, mounting instructions, safety and compliance information, and details on programming interfaces.
| Mains supply | 230 Vac +/- 10 %; 50/60 Hz +/- 5 % |
|---|---|
| Output switching capacity | 1150 VA |
| Analogue input (LRC1025/LRC1035) | 1‑10 Vdc, 25 mA current sinking |
| Analogue input (LRC1015) | N/A |
| Mounting method | 35 mm DIN rail |
| Operating temperature | 5 °C … 55 °C |
| Protection class | IP20 |
| Flammability class | V0 |
The devices operate from a 230 Vac supply with a tolerance of ±10 % and a frequency of 50/60 Hz.
The units are designed to be mounted on a 35 mm DIN rail inside an installation cabinet.
They have a protection class of IP20 and a flammability rating of V0.
