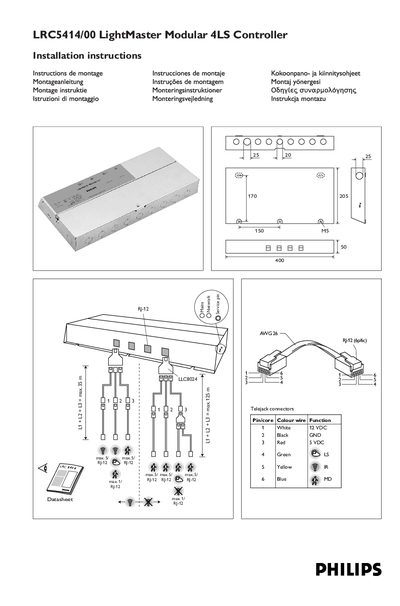

Installation instructions for LRC5414/00 LightMaster Modular 4LS Controller. The controller has a maximum L1 + L2 + L3 connection distance of 35 meters. The maximum connection distance for L1 + L2 + L3 is 125 meters. It can be connected to devices such as LLC8024 and RJ-12. Mainly used for lighting control.
This manual provides step‑by‑step installation instructions for the Philips LRC5414/00 LightMaster Modular 4LS Controller. It includes wiring diagrams, connector pin assignments and safety notes required for proper setup.
Key information such as maximum cable lengths, connector type (Telejack) and IP rating (IP20) are listed, along with a detailed pinout table showing voltage and signal functions for each wire.
| Maximum cable length (LI+ L2+L3) | 35 m |
|---|---|
| Maximum cable length (L1+L2+L3) | 125 m |
| Connector type | Telejack connectors |
| Pin 1 function | 12 V DC |
The maximum cable length for the LI+ L2+ L3 connection is 35 meters.
The L1 + L2 + L3 connection can be up to 125 meters long.
The controller uses Telejack connectors.
