LRM 8115 and LRM 8116 are movement detectors with long range and wide angle. This document provides information about their specifications, connection, installation, etc.

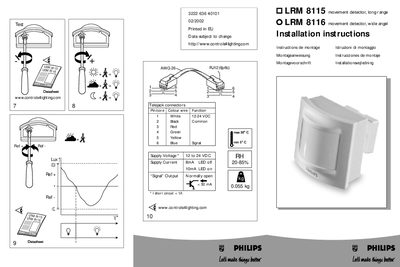

This manual provides the installation instructions for the Philips LRM8115 and LRM8116 movement detectors, including wiring diagrams, connector pin‑outs, and recommended mounting positions. It also lists the electrical characteristics such as supply voltage, current consumption, and output specifications.
Dimensions, cable types, and environmental limits are given to help installers plan the layout of the lighting control system. The document includes multilingual headings but the core technical data are presented in English.
| Supply Voltage | 12 to 24 VDC |
|---|---|
| Supply Current (LED off) | 8 mA |
| Supply Current (LED on) | 10 mA |
| Output Current (Normally Open) | 50 mA |
| Weight | 0.055 kg |
| Cable Type | AWG 26 R12 (6p/60) |
| Connector Pin‑out – White | 12‑24 V DC |
| Connector Pin‑out – Black | Common |
The detectors operate from a 12 V to 24 V DC supply.
It draws about 8 mA when the LED is off.
The normally‑open output can handle up to 50 mA.
The detector uses AWG 26 R12 cable with six conductors.
