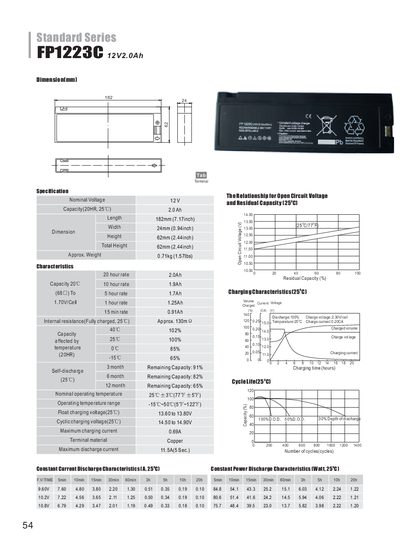

This document details the features and characteristics of FP1223C 12V2.0Ah, including dimensions, rated voltage, capacity, charging and discharging characteristics.
The Standard FP1223C is a 12 V, 2.0 Ah rechargeable battery. Its physical size is 182 mm × 24 mm × 62 mm and it weighs about 0.71 kg. The battery is designed for use in applications requiring compact, lightweight power sources.
Performance data show a nominal voltage of 12 V, a float charging voltage of 13.60‑13.80 V, and a maximum charging current of 0.69 A. It operates from –15 °C to 50 °C, delivers up to 11.5 A discharge current (5 s), and has an internal resistance of approximately 130 mΩ. Capacity varies with discharge rate, ranging from 2.0 Ah (20‑hour) to 0.91 Ah (1‑hour). This manual is written in Chinese.
| Nominal Voltage | 12 V |
|---|---|
| Dimensions (L × W × H) | 182 mm × 24 mm × 62 mm |
| Weight | 0.71 kg |
| Operating Temperature Range | -15 °C to 50 °C |
| Float Charging Voltage (25 °C) | 13.60‑13.80 V |
| Maximum Charging Current | 0.69 A |
| Maximum Discharge Current (5 s) | 11.5 A |
| Internal Resistance (Fully Charged, 25 °C) | ≈130 mΩ |
The battery measures 182 mm in length, 24 mm in width, and 62 mm in height.
It has a nominal voltage of 12 V and a 20‑hour capacity of 2.0 Ah.
The battery can operate from –15 °C up to 50 °C.
Float charging voltage is 13.60 V to 13.80 V at 25 °C, and cyclic charging voltage is 14.50 V to 14.90 V.
