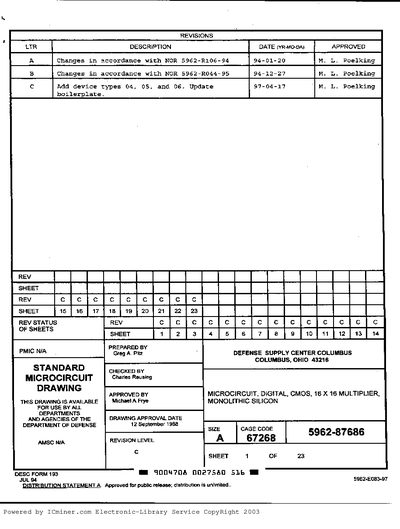

This drawing defines the requirements for the 5962‑87686 microcircuit, a 16 × 16 multiplier that complies with MIL‑STD‑883 and MIL‑PRF‑38535. It includes device types, case outlines, lead finishes, and the part identification number (PIN). The document also lists the applicable military specifications and handbooks that govern the design and testing of the device.
The specification tables provide absolute maximum ratings, recommended operating conditions, and detailed electrical performance characteristics such as supply voltage range, output current limits, power dissipation, and temperature limits. The drawing also describes marking requirements, certification, and change‑notification procedures for qualified manufacturers.
| Supply voltage range | -0.5 V to +7.0 V |
|---|---|
| DC output current | 10 mA |
| Maximum power dissipation | 12 W |
| Lead temperature (soldering, 10 s) | +300 °C |
| Junction temperature | +176 °C |
| Storage temperature range | -65 °C to +150 °C |
| Input high voltage | 2.0 V to 6.0 V |
| Input low voltage | -0.5 V to +0.8 V |
The device operates with a supply voltage from –0.5 V up to +7.0 V.
The maximum power dissipation is 12 W.
The device can be stored between –65 °C and +150 °C.
Input high voltage should be between 2.0 V and 6.0 V, and input low voltage between –0.5 V and +0.8 V.
