This document is a specification sheet for FP1220A 12V2.0Ah battery, including product's length, width, height, total height, weight, rated voltage, capacity, 20 hour rate, 10 hour rate, 5 hour rate, 1 hour rate, 15 minute rate, 40℃, 25℃, 0℃, -15℃, 3 months, 6 months, 12 months, rated operating temperature, operating temperature range, float charging voltage, cyclic charging voltage, maximum charging current, terminal material, maximum discharge current, self-discharge, temperature affected capacity, internal resistance, capacity, 20℃ (68℉) to 1.70V/Cell.

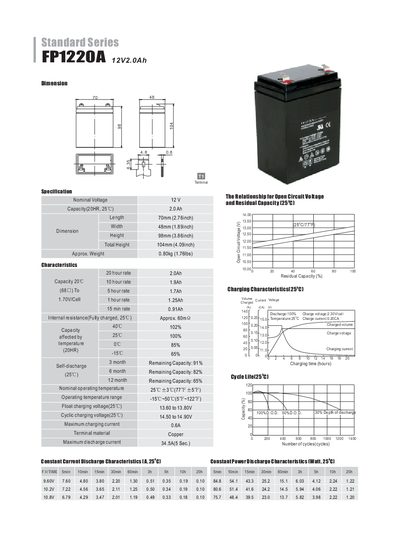

This datasheet provides the electrical and mechanical specifications of the Standard Series FP1220A 12 V 2.0 Ah rechargeable battery. It includes nominal voltage, capacity at various discharge rates, dimensions, weight, operating temperature range, and charging parameters.
Key performance curves such as constant‑power and constant‑current discharge characteristics, float and cyclic charging voltages, and cycle‑life information are also presented, allowing designers to evaluate the battery for their applications.
| Dimensions (L × W × H) | 70 mm × 48 mm × 98 mm |
|---|---|
| Weight | 0.80 kg |
| Operating Temperature Range | -15 °C to 50 °C |
| Internal Resistance (fully charged, 25 °C) | ≈ 60 mΩ |
The battery measures 70 mm × 48 mm × 98 mm (L × W × H).
