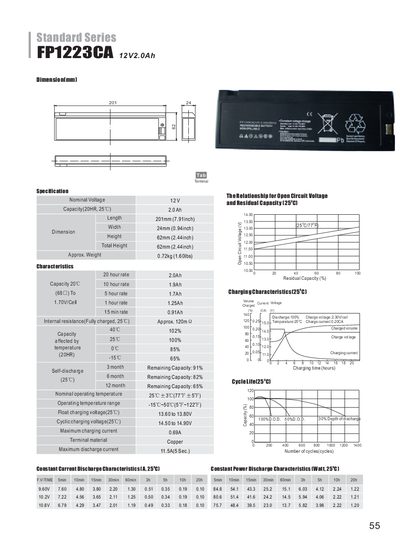

The document describes the features and characteristics of a 12V2.0Ah battery with model FP1223CA.
The FP1223CA battery provides a nominal voltage of 12 V and a capacity of 2.0 Ah (20‑hour rate). Its physical dimensions are 201 mm length, 62 mm height, and 24 mm width, weighing approximately 0.72 kg. The battery is designed for operation between –15 °C and 50 °C.
Key electrical parameters include a float charging voltage of 13.60‑13.80 V, a cyclic charging voltage of 14.50‑14.90 V, a maximum charging current of 0.69 A, and a maximum discharge current of 11.5 A (5 s). The terminal material is copper, and the datasheet also lists discharge characteristics at various time intervals.
| Length | 201 mm (7.91 in) |
|---|---|
| Height | 62 mm (2.44 in) |
| Width | 24 mm (0.94 in) |
| Weight | 0.72 kg (1.60 lb) |
| Float Charging Voltage (25 °C) | 13.60‑13.80 V |
| Cyclic Charging Voltage (25 °C) | 14.50‑14.90 V |
| Maximum Discharge Current | 11.5 A (5 s) |
| Terminal Material | Copper |
| Operating Temperature Range | -15 °C to 50 °C |
