FP1226A is a 12V2.6Ah lithium battery with good cycle life and self-discharge rate.

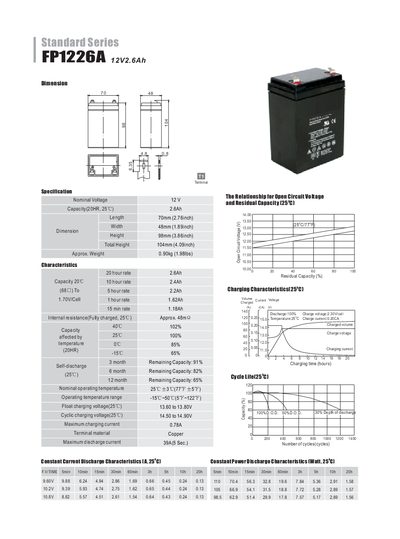

This one‑page datasheet describes the Standard FP1226A 12 V 2.6 Ah sealed lead‑acid battery. It lists physical dimensions, weight, nominal voltage, capacity at various discharge rates, and operating temperature limits.
Performance curves for discharge, charge, cycle life and voltage versus state‑of‑charge are also included, along with recommended float and cyclic charging voltages and maximum charge/discharge currents.
| Nominal Voltage | 12 V |
|---|---|
| Dimensions (L×W×H) | 70 mm × 48 mm × 98 mm |
| Weight | 0.90 kg |
| Maximum Charging Current | 0.78 A |
| Maximum Discharge Current | 39 A (5 sec) |
| Operating Temperature Range | -15 ℃ to 50 ℃ |
| Float Charging Voltage (25 ℃) | 13.60 V to 13.80 V |
| Cyclic Charging Voltage (25 ℃) | 14.50 V to 14.90 V |
The nominal voltage is 12 V.
The battery measures 70 mm × 48 mm × 98 mm (L × W × H).
