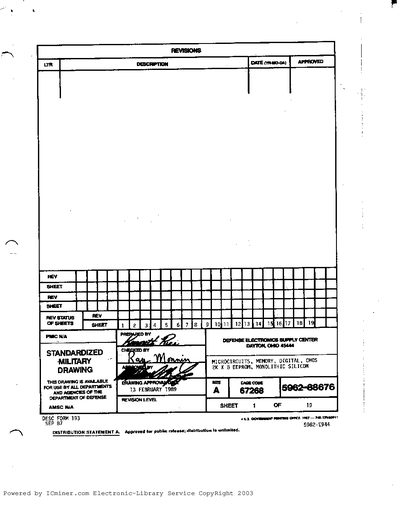

The document specifies the scope, applicable military standards (MIL‑STD‑883, MIL‑M‑38510) and the part number format for the 2K × 8 EEPROM devices. It details the device types, case outlines, and the electrical performance characteristics required for qualified military use.
Electrical parameters such as supply voltage, storage temperature, power dissipation, endurance, and data retention are listed, along with packaging requirements and notes on certification and replaceability.
| Supply voltage range | +4.5 V to +5.5 V |
|---|---|
| Maximum power dissipation | 1.0 W |
| Storage temperature range | -65 °C to +150 °C |
| Endurance | 10,000 cycles |
| Data retention | 10 years (minimum) |
The device operates from +4.5 V to +5.5 V.
It is rated for 10,000 write‑erase cycles.
The EEPROM retains data for at least 10 years.
It can be stored from –65 °C up to +150 °C.
