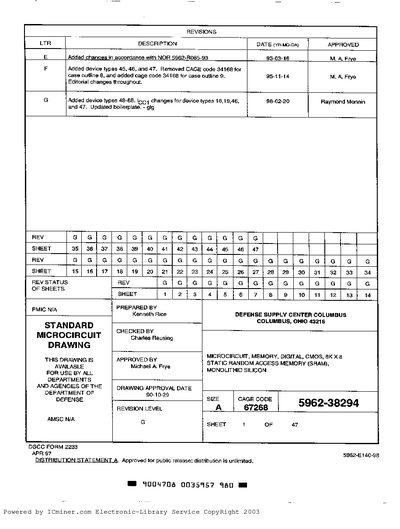

This document provides the official drawing and specification for microcircuit 67268, including scope, part identification numbers (PIN), device classes, case outlines, lead finishes and radiation hardness assurance levels. It defines the absolute maximum ratings, recommended operating conditions and the electrical performance characteristics for the listed device types.
The drawing references numerous Department of Defense standards such as MIL‑PRF‑38535, MIL‑STD‑883, MIL‑STD‑973 and MIL‑STD‑1835, and lists the approved vendors and their CAGE codes. It also includes marking requirements, certification procedures and substitution data for the microcircuit.
| Device type | 8K x8 CMOS SRAM |
|---|---|
| Supply voltage range (Vcc) | 4.5 V to 5.5 V |
| Lead finish | As specified in MIL‑PRF‑38535 |
| Maximum power dissipation (Pp) | Not specified (document lists as –) |
The drawing lists several device types, including an 8K × 8 CMOS SRAM with a 45 ns access time.
The PIN follows the format shown in the example: 5962‑38294 1 Q x.x, where the fields represent drawing number, device class, case outline, lead finish, etc.
The recommended supply voltage (Vcc) is between 4.5 V and 5.5 V for the listed device types.
