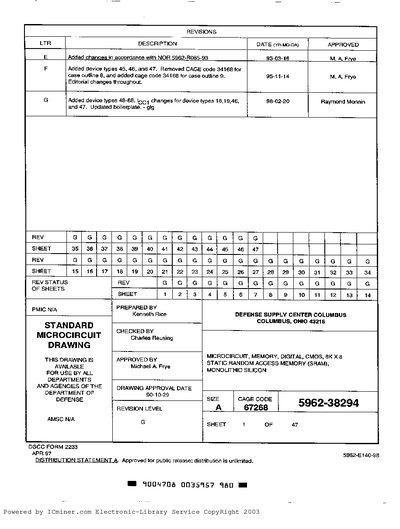

STANDARD MICROCIRCUIT DRAWING SIZE 67268 Data sheet (1)

About this manual

This document defines the drawing 5962‑38294 for standard microcircuits used in high‑reliability and space applications. It specifies the Part Identification Number (PIN) format, device classes (Q, V, M), case outlines, lead finishes and radiation‑hardness options.

The drawing includes absolute maximum ratings, recommended operating conditions, applicable government specifications, electrical performance tables, marking conventions and certification requirements for the listed device types (1‑68). Vendor information for approved manufacturers is also provided.

What's inside

• Scope
• Device Types and Classes
• Case Outlines and Lead Finish
• Absolute Maximum Ratings
• Recommended Operating Conditions
• Applicable Documents and Standards
• Electrical Performance Characteristics
• Marking and Certification
• Vendor List

Specifications

Frequently asked questions

What is the format of the Part Identification Number (PIN)?

The PIN is shown as "5962‑38294 1 Q x.x", where the first part is the drawing number, followed by the device class and other designators.

Which device classes are covered by this drawing?

Device classes Q, V (high‑reliability and space) and M (non‑JAN class B) are covered.
