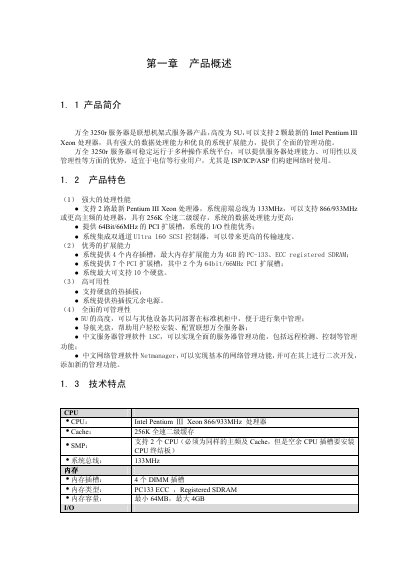

The Wanquan 3250r server is a Lenovo rack server product with a height of 5U. It can support 2 latest Intel Pentium III Xeon processors, has strong data processing capabilities and excellent system expansion capabilities, and provides comprehensive management functions.
The ThinkServer 3250R is a 5U rack‑mount server that supports up to two Intel Pentium III Xeon processors, four DIMM slots (max 4 GB PC‑133 ECC Registered SDRAM), and up to ten hot‑swap hard drives. It includes integrated dual‑channel Ultra 160 SCSI, a 10/100 Mbps Ethernet controller, and redundant 350 W power supplies.
The manual covers system architecture, motherboard jumpers, CPU and memory installation, chassis handling, management features (IPMI‑compliant BMC), and a detailed troubleshooting section with beep‑code meanings, CMOS clearing procedures, and common startup issues. This manual is written in Chinese.
| Memory Slots | 4 DIMM slots, up to 4 GB PC‑133 ECC Registered SDRAM |
|---|---|
| PCI Expansion Slots | 4×33 MHz/32‑bit, 2×66 MHz/64‑bit, 1×33 MHz/64‑bit |
| SCSI Controller | Integrated Adaptec 7899 dual‑channel (Ultra 160 + Ultra wide) |
| Network Interface | Integrated 10 Mbps/100 Mbps Ethernet |
| Power Supply | 350 W 1+1 hot‑swap redundant |
| Dimensions | 216 mm (H) × 660 mm (D) × 445 mm (W) |
| Weight | 28 kg |
| Operating Temperature | 5 °C ~ 35 °C |
It signals a BIOS ROM checksum error.
The server can accommodate up to ten hot‑swap hard drives.
Only Intel Pentium III Xeon processors with On‑Cartridge Voltage Regulator (OCVR), 133 MHz FSB and 5 V are supported.
