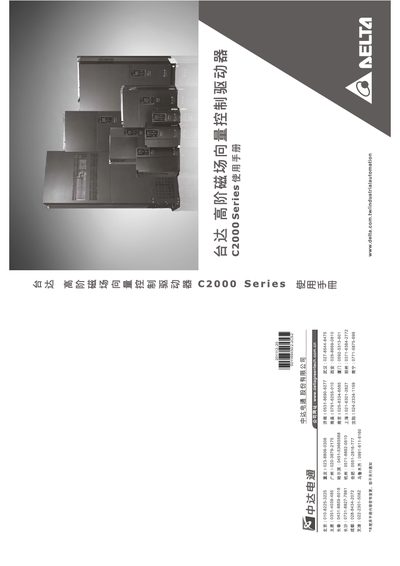

This document is an operation and installation manual for AC motor drives. It includes safety precautions before use, specifications and parameters of the drives, accessories selection, and connection methods for control circuit terminals.
This manual covers safety precautions that must be observed before connecting power, including disconnecting the AC source and confirming the POWER indicator is off. It also explains proper handling of internal circuitry to avoid static discharge and unauthorized modifications.
Installation guidance includes wiring of input and output terminals, mounting dimensions, and configuration of CANopen and PLC interfaces. Technical specifications such as input/output ratings, frequency ranges, and model identifiers are listed for reference. This manual is written in Chinese.
| Input Voltage (Normal Duty) | 3PH 380‑480V 50/60Hz 4.3A |
|---|---|
| Output Power (Normal Duty) | 3PH 380‑480V 3A 2.4KVA 1HP |
| Output Power (Heavy Duty) | 3PH 380‑480V 2.9A 2.3KVA 1HP |
| Frequency Range (Normal Duty) | 0‑600 Hz |
| Frequency Range (Heavy Duty) | 0‑300 Hz |
| Model Identifier | VFD007C43A |
Input terminals are labeled R/L1, S/L2, and T/L3.
Output terminals are labeled U/T1, V/T2, and W/T3.
The normal‑duty frequency range is 0 to 600 Hz.
