Delta DVP-SV/SV2 PLC Installation Manual

DVP-SV/SV2 is a 28-point (16 input + 12 output) PLC MPU, offering various instructions and with 16k(SV)/30k(SV2) steps program memory, able to connect to all Slim type series extension models, including digital I/O (max. 512 points), analog modules (for A/D, D/A conversion and temperature measurement) and all kinds of high-speed extension modules. 4 groups of high-speed (200kHz) pulse output and 2 two-axis interpolation instructions satisfy all kinds of applications. DVP-SV/SV2 is small in size and easy to install.

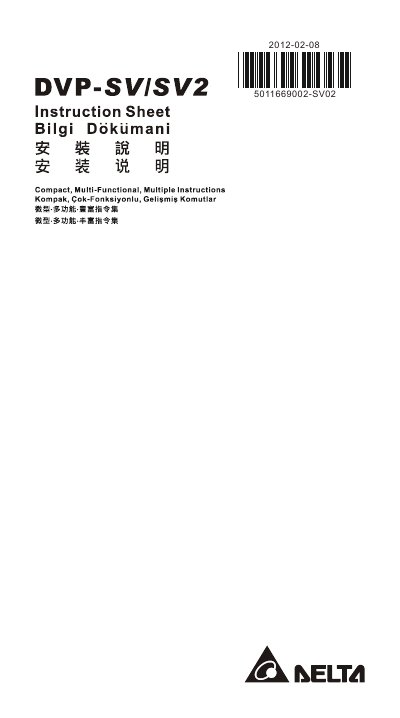

Delta DVP-SV/SV2 PLC Installation Manual - cover page
Brand
AELTA
Document type
Installation Guide
Language
English
Pages
20
File format
PDF
File size
1009 KB
Published
15 March, 2012
Updated
30 September, 2023
MD5 checksum
971B147A0C27EB48A14A80EDF7DF9BC9

About this manual

The Delta DVP‑SV/SV2 series is a compact 28‑point PLC MPU (16 inputs + 12 outputs) with optional digital, analog and high‑speed modules. This manual provides the essential information for installing the controller safely and correctly.

It includes instructions for mounting (direct or DIN‑rail), wiring guidelines, power‑supply requirements, safety precautions, battery‑low indicator handling, and basic I/O configuration details.

What's inside

  • Product Profile
  • Electrical Specifications
  • I/O Configuration
  • Installation
  • Wiring
  • Power Supply
  • Safety Wiring
  • Input Point Wiring
  • Output Point Wiring
  • Battery Low Indicator

Specifications

Power supply voltage24VDC (-15% ~ 20%)
Inrush currentMax. 2.2A @ 24VDC
Fuse capacity2.5A/30VDC (Polyswitch)
Power consumption6W
Insulation resistance> 5MΩ (500VDC to ground)
Operating temperature0 °C ~ 55 °C
Storage temperature-25 °C ~ 70 °C
Weight260 g (SV models)
Recommended wiring gauge22‑16 AWG (1.5 mm)

Frequently asked questions

What wire gauge should be used for I/O wiring?

Use 22‑16 AWG (1.5 mm) single or multiple core wire on I/O terminals.

What is the acceptable power‑supply voltage range for the PLC?

The power supply must be between 20.4 VDC and 28.8 VDC.

How should the PLC be mounted on a DIN rail?

Pull down the retaining clip, place it onto the rail, and gently push it up; use the clip to secure the unit.

What does the BAT.LOW indicator mean and what should be done?

It signals low battery voltage; replace the battery or send the PLC to Delta for a new battery.
