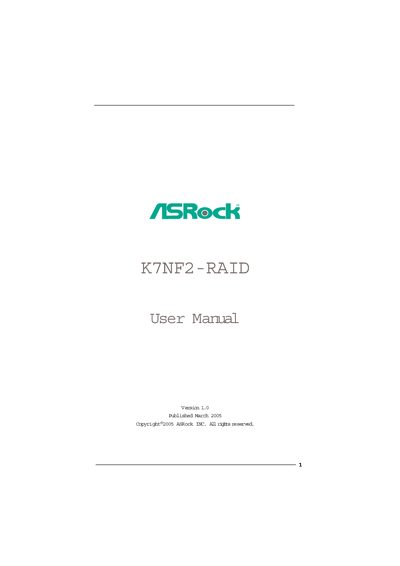

ASRock K7NF2-RAID Motherboard User Manual

K7NF2-RAID is a motherboard released by ASRock

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 277 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: K7NF2-RAID
MD5 checksum: C16C0B688B9D4A991778F7AFEC4CB6B2
PDF: ASRock K7NF2-RAID Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K7NF2-RAID motherboard, outlines its package contents, and details the hardware layout and I/O features. It guides users through safe installation, component mounting, and pre‑installation precautions.

The document also covers BIOS Setup Utility options, hardware health monitoring, boot and security screens, and software support including driver installation from the support CD. Compatibility with Windows 98/ME/2000/XP and supported hardware specifications are listed throughout.

What's inside

Introduction
Installation
Motherboard Layout
BIOS Setup Utility
Hardware Health Event Monitoring
Boot Screen
Security Screen
Software Support

Specifications

Form Factor	ATX (12.0‑in x 7.8‑in)
CPU Socket	Socket A (462 pins)
North Bridge Chipset	nVidia nForce 2 Ultra 400
Memory Slots	3 DDR DIMM slots, max 3 GB
SATA Connectors	2 SATA connectors, 1.5 Gb/s
USB Ports	8 USB 2.0 ports
Audio	5.1‑channel AC’97
LAN	10/100 Ethernet

Frequently asked questions

How many SATA connectors does the K7NF2-RAID motherboard have?

It provides two SATA connectors that support up to two SATA devices at 1.5 Gb/s.

What is the maximum memory supported by the K7NF2-RAID motherboard?

The board supports up to 3 GB of DDR memory across its three DIMM slots.

Which Windows operating systems are supported by this motherboard?

It supports Microsoft Windows 98 SE, Windows ME, Windows 2000, and Windows XP.
