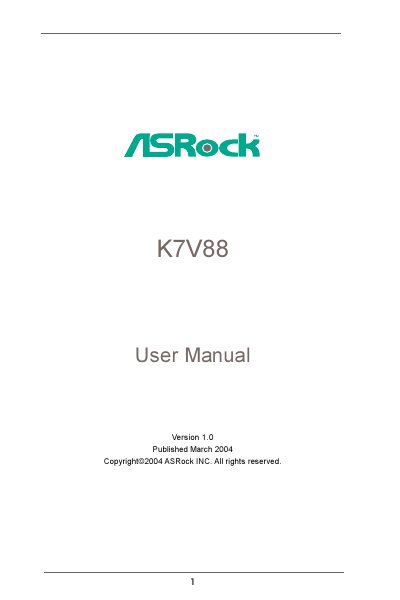

K7V88 User Manual
This manual introduces the ASRock K7V88 motherboard, its package contents, and detailed hardware specifications such as CPU socket, chipset, memory support, and I/O connectors. It also covers safety precautions, installation steps for CPU, memory, storage, and other components.
The guide includes a comprehensive BIOS Setup Utility section, explaining navigation, configuration options for CPU, chipset, ACPI, IDE, PCI, USB, and security settings, as well as software support information for drivers and utilities on the supplied support CD.
| CPU Socket | Socket A (462 pins) for AMD Athlon/XP/Duron |
|---|---|
| Memory Slots | 4 DDR DIMM slots, up to 4 GB, DDR1/2/3/4 |
| SATA Connectors | 2 SATA connectors, 1.5 Gb/s transfer rate |
| USB Ports | 8 USB 2.0 ports (6 rear, 2 via header) |
| PCI Slots | 5 PCI slots (PCI 2.3 spec) |
| AGP Slot | 1 AGP slot, 1.5 V, 8X/4X |
The motherboard supports Microsoft Windows 98SE, ME, 2000, and XP.
It provides five PCI slots conforming to the PCI 2.3 specification.
Unplug the power cord and avoid static electricity by using a grounded wrist strap or anti‑static surface.
The board supports up to 4 GB of memory across its four DDR DIMM slots.
