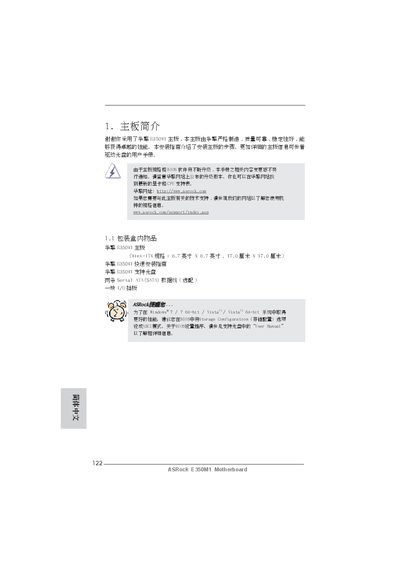

This document introduces the features and performance of the ASRock E350M1 motherboard, and provides detailed information such as installation guide and motherboard specifications.
This manual introduces the ASRock E350M1 Mini‑ITX motherboard, its hardware layout, supported CPUs, memory, graphics, audio, networking, and storage interfaces. It also points users to the ASRock website for the latest BIOS and driver updates.
The guide covers detailed installation procedures, jumper settings, connector pin‑outs, BIOS configuration, and troubleshooting tips such as clearing CMOS and handling overheating warnings. This manual is written in Chinese.
| Form factor | Mini‑ITX (6.7" × 6.7") |
|---|---|
| CPU support | AMD Zacate E350/E350D APU (dual‑core) |
| Chipset | AMD A50M |
| Memory slots | 2 × DDR3 DIMM, up to 16 GB, 1066/800 MHz, non‑ECC |
| Audio codec | Realtek ALC892, 7.1‑channel HD audio |
| SATA ports | 4 × SATA3 6 Gb/s (NCQ, AHCI, hot‑plug) |
Press during POST to enter the BIOS setup program.
Set the Storage Configuration option in BIOS to AHCI mode for better performance.
