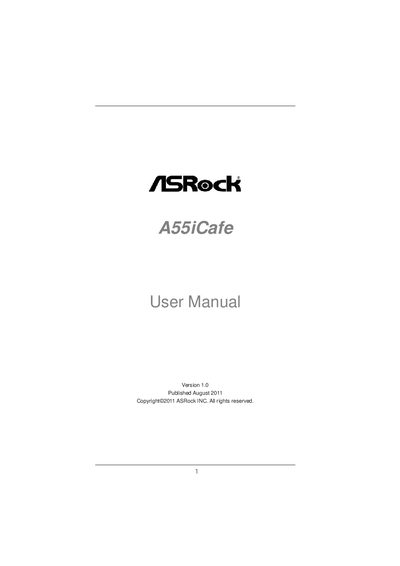

ASRock A55iCafe User Manual
This manual introduces the ASRock A55iCafe motherboard, covering its features, specifications, and the steps required to install and configure the board. It includes safety notices, warranty information, and regulatory compliance details.
The guide is organized into sections on package contents, CPU and memory installation, expansion slots, dual graphics, rear panel connectors, UEFI BIOS configuration, driver installation, and troubleshooting. It also lists the specifications of the board, such as supported processors, memory types, and networking capabilities.
| Form Factor | ATX (12.0-in x 8.0-in, 30.5 cm x 20.3 cm) |
|---|---|
| CPU Socket | Socket FM1 (supports 100W processors) |
| Chipset | AMD A55 FCH (Hudson‑D2) |
| Memory Slots | 4 DDR3 DIMM slots, up to 32 GB, DDR3 2400+(OC)/1866/1600/1333/1066/800 |
| Maximum Memory Capacity | 32 GB |
| Expansion Slots | 1× PCIe 2.0 x16, 2× PCIe 2.0 x1, 2× PCI |
| Graphics Output | Dual VGA (D‑Sub) and DVI‑D ports, supports AMD Radeon HD 65XX/64XX |
| Audio Codec | Realtek ALC662, 5.1 CH HD Audio |
| LAN | Realtek RTL8111E Gigabit Ethernet (10/100/1000 Mb/s) |
| SATA Connectors | 6× SATA2 3.0 Gb/s ports, RAID 0/1/10, NCQ, AHCI, Hot Plug |
| BIOS | 32 Mb AMI UEFI BIOS with GUI support |
It supports Socket FM1 processors up to 100 W.
The rear panel includes a D‑Sub (VGA) port and a DVI‑D port for dual display output.
Yes, the six SATA2 connectors support RAID 0, RAID 1, and RAID 10.
