ASRock E350M1/USB3 is a Mini-ITX motherboard from ASRock, it is powered by AMD dual core Zacate E350/E350D APU, supports DDR3 1066/800 non-ECC, un-buffered memory, and the maximum system capacity is 16GB.

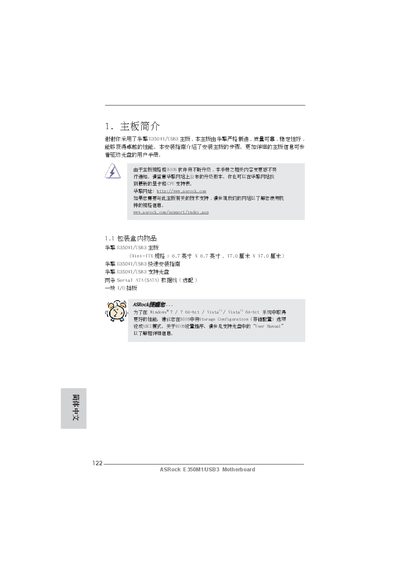

This guide provides step‑by‑step instructions for installing the ASRock E350M1/USB3 Mini‑ITX motherboard. It includes a list of items in the packaging, detailed motherboard specifications, and diagrams of the connector layout.
The document also explains BIOS configuration, front‑panel and audio connections, and safety/warranty information, helping users set up the system correctly and troubleshoot common issues. This manual is written in Chinese.
| Form factor | Mini‑ITX (6.7" x 6.7") |
|---|---|
| CPU | AMD Dual‑core Zacate E350/E350D APU |
| Chipset | AMD A50M |
| Memory support | DDR3 1066/800, up to 16 GB |
| PCI Express slot | 1 × PCIe 2.0 × 16 |
| Integrated graphics | AMD Radeon HD 6310 |
| Video outputs | D‑Sub, DVI‑D, HDMI (max 1920×1200) |
| HDMI max resolution | 1920×1200 (1080p) |
| Audio | 7.1 ch High‑Definition Audio, Realtek ALC892 |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| SATA ports | 4 × SATA3 6.0 Gb/s (NCQ, AHCI) |
| USB 3.0 ports | 2 × USB 3.0 (Etron EJ168A, up to 5 Gb/s) |
| USB 2.0 ports | 4 × USB 2.0 |
| BIOS | 32 Mb AMI UEFI BIOS with GUI |
The board includes four SATA3 ports that support 6.0 Gb/s, NCQ and AHCI.
It uses a Realtek RTL8111E Gigabit Ethernet controller.
Yes, it provides 7.1‑channel high‑definition audio with a Realtek ALC892 codec.
The board is designed for AMD Zacate E350/E350D dual‑core APUs.
