This document describes the features and performance of the ASRock Z68M/USB3 motherboard, including supported processor types, memory technology, expansion slots, etc.

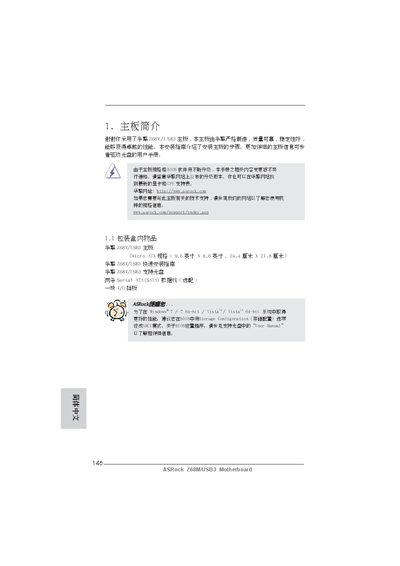

This guide introduces the ASRock Z68M/USB3 Micro‑ATX motherboard, covering its features, supported CPUs, memory options, expansion slots, I/O connectors, and bundled software utilities. It also explains how to install the board, connect power and peripherals, and configure BIOS settings for optimal performance.
The document includes detailed hardware specifications, recommended BIOS settings such as enabling AHCI mode for Windows, and safety warnings about over‑clocking and proper cooling. It references the support CD for additional drivers and utilities, and points users to the ASRock website for the latest updates. This manual is written in Chinese.
| Form factor | Micro ATX (9.6 in × 8.6 in) |
|---|---|
| CPU socket | LGA1155 |
| Supported CPUs | 2nd‑gen Intel Core i7 / i5 / i3 |
| Memory slots | 2 DDR3 DIMM slots |
| Maximum memory | 16 GB |
| Supported memory speeds | DDR3 2133/1866/1600/1333/1066 |
| USB ports | 4 × USB 2.0, 2 × USB 3.0 |
| LAN controller | Realtek RTL8111E Gigabit Ethernet |
| Audio codec | Realtek ALC892 |
| BIOS | 64 Mb AMI BIOS (UEFI GUI) |
Set the Storage Configuration option to AHCI mode in the BIOS.
The board supports up to 16 GB of DDR3 memory.
There are two rear USB 3.0 ports.
Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit are supported.
