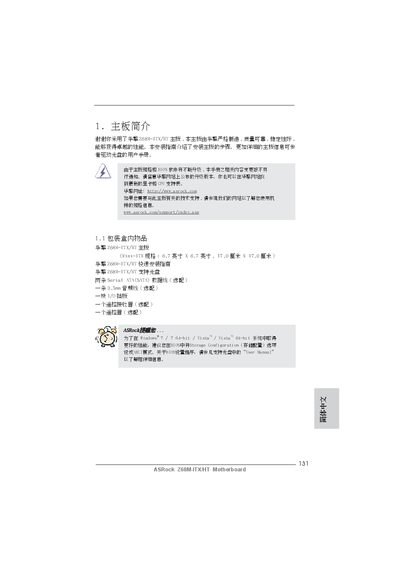

ASRock Z68M-ITX/HT Motherboard User Manual

ASRock Z68M-ITX/HT Motherboard is a mini-ITX sized motherboard produced by ASRock. It supports the second generation Intel Core i7/i5/i3 processors, and has an integrated Intel HD Graphics 2000/3000 graphics card. It also supports dual channel DDR3 memory technology and has a maximum capacity of 16GB.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 12
File format: PDF
File size: 619 KB
Published: 14 March, 2012
Updated: 01 October, 2023
Model: Z68M-ITX
MD5 checksum: ADC4107709C44707908F65A4FD6F8A70
PDF: ASRock Z68M-ITX/HT Motherboard User Manual PDF

About this manual

This manual introduces the ASRock Z68M-ITX/HT Mini‑ITX motherboard, detailing its hardware specifications, supported CPUs, memory configurations, storage options, and connectivity interfaces.

It also includes step‑by‑step installation guidance, BIOS configuration instructions, descriptions of exclusive ASRock features such as AXTU, SmartView, and environmental compliance information. This manual is written in Chinese.

What's inside

Board Introduction
Specifications
I/O Interfaces
Exclusive Features
Default Settings and Jumpers
Onboard Connectors
USB 2.0 Expansion Header
Audio and LAN
BIOS Information
Support Disc and Software

Specifications

Form factor	Mini‑ITX (6.7" x 6.7")
CPU socket	LGA1155, supports 2nd‑gen Intel Core i7/i5/i3
Chipset	Intel Z68
LAN	Realtek RTL8111E Gigabit Ethernet

Frequently asked questions

How many USB 3.0 ports does the motherboard provide?

The board includes two directly usable USB 3.0 ports.

What audio codec is used on the Z68M-ITX/HT motherboard?

It uses the Realtek ALC892 7.1‑channel audio codec.

Which operating systems are supported by this motherboard?

Supported OSes are Windows 7/7 64‑bit, Vista/Vista 64‑bit, and Windows XP/XP 64‑bit.

How many PCI Express slots are available?

There is one PCI Express 2.0 ×16 slot.

Download PDF (619 KB)
