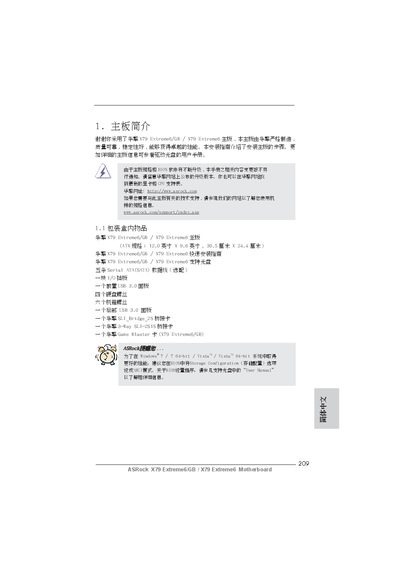

ASRock X79 Extreme6/GB Motherboard Quick Installation Guide

About this manual

This guide introduces the ASRock X79 Extreme6/GB motherboard, lists the packaging contents and gives step‑by‑step installation instructions for CPU, memory, and jumper settings.

It also details the board’s specifications, including supported LGA2011 CPUs, up to 64 GB DDR3 memory, multiple PCI‑Express slots, Gigabit LAN, 7.1‑channel audio, various USB, SATA and eSATA ports, and UEFI BIOS features such as Instant Flash and power‑saving options. This manual is written in Chinese.

What's inside

• Packaging Contents
• Motherboard Specifications
• LAN Features
• I/O Interfaces
• BIOS Features
• CMOS Reset
• Jumpers and Quick Power Buttons

Specifications

Frequently asked questions

How do I reset the CMOS on the ASRock X79 Extreme6/GB motherboard?

Use the CLRCMOS1 jumper to short the pins for about 5 seconds; after power is removed the BIOS settings are cleared.

What tool is used to update the BIOS on this board?

The Instant Flash utility, a built‑in flash‑ROM BIOS update program, can be launched during POST by pressing or .
