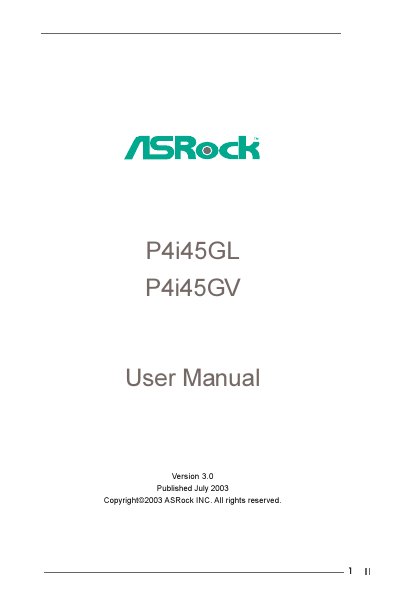

This document is the user manual for the P4i45GL and P4i45GV motherboards, providing information about the features and characteristics of the products.
This manual introduces the ASRock P4i45GL / P4i45GV Micro‑ATX motherboards, lists the package contents, and details the hardware layout for each model. It also covers CPU, memory, storage, and peripheral connections, plus a quick‑start guide for new builders.
Later sections describe the AMI BIOS setup utility, security and power options, and software support including the optional support CD and driver installation. An appendix provides advanced BIOS configuration for experienced users.
| Form factor | Micro ATX (9.6" x 7.0") |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
| North Bridge chipset | Intel 845GL (P4i45GL) / Intel 845GV (P4i45GV) |
| IDE ports | 2 IDE connectors, ATA 100 / Ultra DMA Mode 5 |
| USB ports | 4 rear USB 2.0 ports + header for 2 more |
| Audio | 5.1‑channel AC’97 audio |
| Optional LAN | 10/100 Mbps Ethernet (PCI LAN optional) |
Both boards support Intel Pentium 4 and Celeron processors that use the Socket 478 interface.
