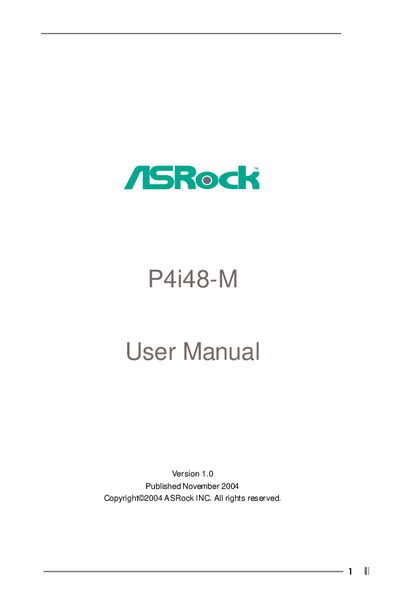

ASRock P4i48-M Motherboard User Manual

This is the summary of P4i48-M user manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 34
File format: PDF
File size: 618 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: P4i48-M, P4i48
MD5 checksum: 18F7E5490BE5F884F8F42ECB549C0D70
PDF: ASRock P4i48-M Motherboard User Manual PDF

About this manual

This manual guides users through the hardware installation of the ASRock P4i48-M Micro ATX motherboard, including CPU, memory, storage and peripheral connections. It also covers safety precautions and pre‑installation checks.

The document explains BIOS setup options, hardware monitoring, and provides information on supported operating systems, drivers and utilities available on the support CD.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
ASRock I/O Plus
Installation
BIOS Setup Utility
Software Support
Contact Information

Specifications

Form Factor	Micro ATX (9.6 in x 7.8 in)
CPU Socket	Socket 478
IDE Ports	2 IDE ports, ATA100 Ultra DMA Mode 5
SATA	Supports up to 2 SATA devices at 1.5 Gb/s
USB 2.0 Ports	8 ports (6 rear, 2 via headers)
LAN	10/100 Ethernet, Wake‑On‑LAN support
Audio	5.1‑channel AC’97 audio
PCI Slots	3 PCI 2.2 slots
AGP Slot	1 AGP 1.5 V slot, 8X/4X

Frequently asked questions

What operating systems are supported by the P4i48-M motherboard?

It supports Microsoft Windows 98 SE, ME, 2000 and XP.

How many USB 2.0 ports are available on the motherboard?

The board provides eight USB 2.0 ports – six on the rear panel and two via internal headers.

What is the maximum memory capacity the board can handle?

The motherboard can accommodate up to 2 GB of DDR memory.
