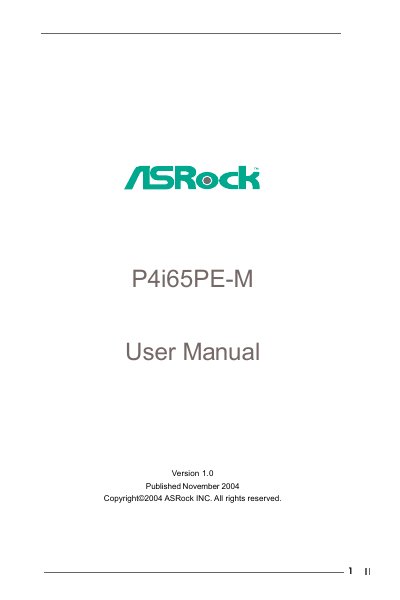

ASRock P4i65PR-M motherboard user manual

ASRock P4i65PE-M User Manual is a document that introduces the features and characteristics of the P4i65PE-M motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 34
File format: PDF
File size: 616 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: P4i65PE-M
MD5 checksum: 14D8CA450675F16A8EFFE689590360FC
PDF: ASRock P4i65PR-M motherboard user manual PDF

About this manual

This manual covers the ASRock P4i65PE-M Micro ATX motherboard, detailing package contents, specifications, layout, and step‑by‑step installation procedures. It also includes BIOS configuration guidance and information on the support CD utilities.

Additional sections describe hardware health monitoring, security settings, and supported Windows operating systems, helping users configure and maintain the system safely and efficiently.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Installation
BIOS Setup Utility
Software Support
Boot Screen
Security Screen
Exit Screen

Specifications

Form Factor	Micro ATX (9.6" x 7.8")
CPU Socket	Socket 478 (Pentium 4 / Celeron)

Frequently asked questions

What operating systems are supported by this motherboard?

It supports Microsoft Windows 98 SE, ME, 2000, and XP.

How many SATA devices can be connected?

Up to two SATA devices at 1.5 Gb/s data transfer rate.

How many PCI slots are available?

Three PCI slots are provided.
