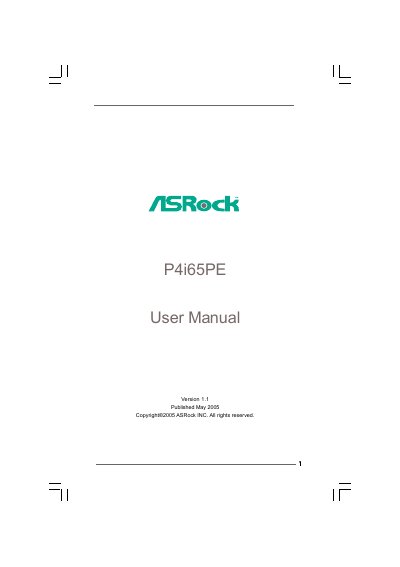

This document is the user manual for ASRock P4i65PE, version 1.1, published in May 2005. The document includes copyright information and usage instructions for the product, as well as a disclaimer and specifications.
This manual introduces the ASRock P4i65PE ATX motherboard, covering package contents, hardware layout, and key features such as the Intel 865PE chipset, 8‑channel audio, and multiple USB ports. It also explains safety precautions and proper handling before installation.
Subsequent sections guide you through CPU, memory, and peripheral installation, BIOS setup utility options, and software support including driver CD usage. The document ends with troubleshooting tips, security password settings, and contact information.
| CPU Socket | Socket 478, supports Intel Pentium 4 / Celeron |
|---|---|
| Supported Memory Types | DDR1, DDR2, DDR3, DDR4 (PC3200/PC2700/PC2100) |
| SATA Support | 2 SATA devices at 1.5 Gb/s (no RAID, no Hot Plug) |
| USB Ports | 8 USB 2.0 ports (4 rear, 4 via headers) |
| Audio | 7.1‑channel AC’97 audio |
| LAN | 10/100 Mbps Ethernet with Wake‑On‑LAN |
The board provides eight USB 2.0 ports – four on the rear panel and four additional ports via two internal headers.
The motherboard can accommodate up to 4 GB of DDR memory.
It supports Microsoft Windows 98 SE, Windows ME, Windows 2000, and Windows XP.
