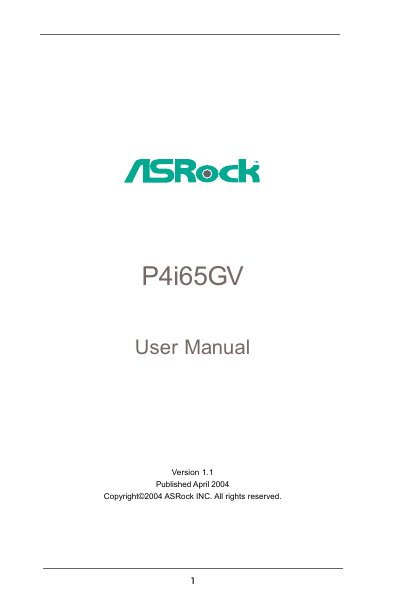

This manual introduces the ASRock P4i65GV Micro ATX motherboard, lists the package contents, and details the hardware layout, supported CPUs, memory, and expansion options. It also includes a comprehensive BIOS Setup Utility guide covering configuration, boot settings, security, and hardware health monitoring.
The document provides software support information, including driver installation from the supplied support CD, utilities, and a PC‑DIY live demo program. It contains FCC compliance notes, warranty disclaimer, and contact details for further assistance. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6‑in x 7.8‑in) |
|---|---|
| CPU Socket | Socket 478 |
| Chipset | North Bridge Intel 865GV, South Bridge Intel ICH5 |
| SATA Support | Up to 2 SATA devices at 1.5 Gb/s (no RAID/hot‑plug) |
| USB Ports | 8 USB 2.0 ports (6 rear, header for 2 additional) |
| LAN | 10/100 Mbps Ethernet |
| Audio | 5.1‑channel AC’97 audio |
The motherboard provides eight USB 2.0 ports – six on the rear panel and a header that supports two additional ports.
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
Yes, it supports up to two SATA devices at 1.5 Gb/s, but does not support RAID or hot‑plug functions.
