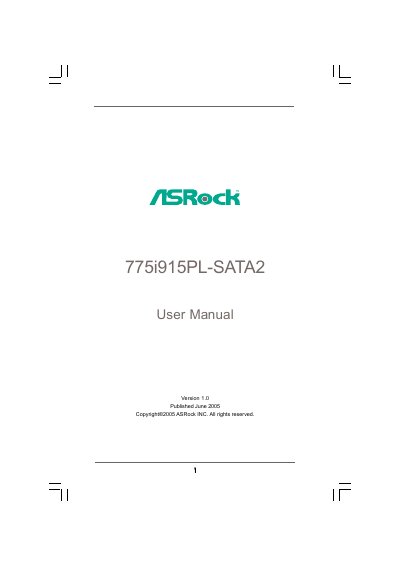

This is a user manual for ASRock 775i915PL-SATA2 motherboard, describing the features and characteristics of the product.
This manual covers the hardware installation steps for the ASRock 775i915PL-SATA2 motherboard, including CPU, memory, expansion slots, and SATA devices. It also details BIOS configuration options and safety cautions.
Additional sections describe the support CD contents, driver installation, and a live demo for LGA775 CPU installation, as well as contact information and warranty notices. This manual is written in Chinese.
| Form Factor | ATX (12.0‑in x 8.0‑in, 30.5 cm x 20.3 cm) |
|---|---|
| CPU Socket | 775‑Pin Socket (LGA775) |
| Supported CPUs | Intel Pentium 4 / Celeron D processors |
| USB 2.0 Ports | 8 ports (4 rear, 4 via headers) |
| Audio | 7.1‑channel AC’97 |
| LAN | 10/100 Mbps Ethernet |
It supports Microsoft Windows 98, ME, 2000, XP, and XP 64‑bit.
It uses an ATX form factor measuring 12.0 in × 8.0 in (30.5 cm × 20.3 cm).
