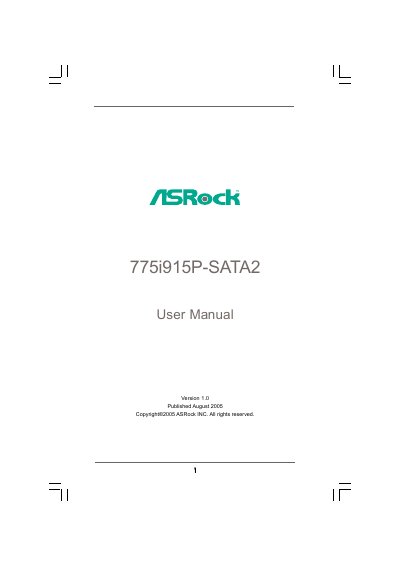

ASRock 775i915P-SATA2 Motherboard User Manual

This document is the user manual of 775i915p-sata2

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 42
File format: PDF
File size: 366 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: 775I915P-SATA2
MD5 checksum: 632D13A6ADD1C366E6DCDF5618E1CF99
PDF: ASRock 775i915P-SATA2 Motherboard User Manual PDF

About this manual

This manual guides users through the hardware installation of the ASRock 775i915P-SATA2 motherboard, covering package contents, CPU and memory installation, expansion slot usage, and SATA configuration. It also details BIOS setup options, security settings, and software support provided on the included support CD.

Additional sections describe boot configuration, password management, and troubleshooting tips, with contact information for further assistance. The document is intended for end‑users building or upgrading a PC with this motherboard.

What's inside

Introduction
Installation
BIOS Setup Utility
Software Support
Boot Screen
Security Screen
Exit Screen
Contact Information

Specifications

Form Factor	ATX (12.0 in x 9.6 in)
CPU Socket	LGA 775 (775‑Pin) supporting Intel Pentium 4 / Celeron D
Chipset	Intel 915P northbridge, Intel ICH6 southbridge

Frequently asked questions

Which CPUs are supported by the 775i915P-SATA2 motherboard?

It supports Intel Pentium 4 and Celeron D processors that use the LGA 775 (775‑pin) socket.

What BIOS version is used on this motherboard?

The motherboard uses a 2 Mb AMI BIOS.
