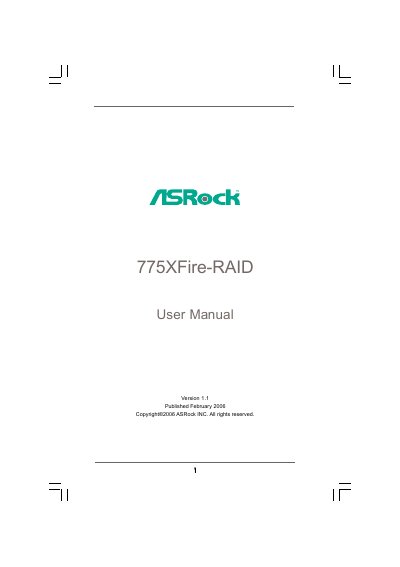

775XFire-RAID User Manual, Version 1.1, Published February 2006. Copyright©2006 ASRock INC. All rights reserved.
This manual introduces the ASRock 775XFire-RAID motherboard, an ATX‑form factor board with LGA 775 socket, Dual‑Channel DDRII memory, and support for CrossFire graphics. It outlines the package contents, specifications, and the layout of the board.
The guide covers step‑by‑step hardware installation, BIOS configuration, RAID setup, and software support including drivers and utilities on the supplied Support CD. It also details boot, security, and exit screens of the AMI BIOS utility.
| Form Factor | ATX (12.0‑in x 8.6‑in) |
|---|---|
| CPU Socket | LGA 775 |
| Chipset | Northbridge Intel® 925X, Southbridge Intel® ICH6R |
| Memory | Dual‑Channel DDRII, 4 DIMM slots, max 4 GB |
| Audio Codec | Realtek ALC861 7.1‑channel |
| LAN | Realtek PCI LAN 8101L, 10/100 Mbps |
| Expansion Slots | 1 × PCI‑Express x16, 1 × AGI Express (x4), 1 × PCI‑Express x1, 3 × PCI |
| SATA Connectors | 4 × Serial ATA 1.5 Gb/s, RAID support |
It provides four Serial ATA 1.5 Gb/s connectors that support RAID functions.
The board uses a 4 Mb AMI BIOS, version 2.54.
Yes, the expansion slot supports ATI® CrossFire™ technology.
The motherboard uses an LGA 775 socket for Intel® Pentium® 4 and Celeron® D CPUs.
