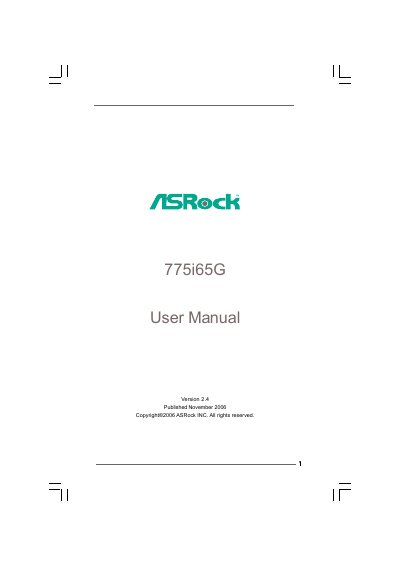

775i65G User Manual is the manual for ASRock 775i65G motherboard
This manual introduces the ASRock 775i65G Micro ATX motherboard, describing its package contents, hardware layout, and key features. It also explains safety notices and regulatory compliance.
The document covers detailed installation procedures, BIOS configuration options, and software support, including driver installation from the supplied support CD. Reference tables for memory, CPU, and I/O settings help users configure the system correctly.
| Form Factor | Micro ATX 9.6" x 8.0" |
|---|---|
| CPU Socket | LGA 775 |
| Northbridge Chipset | Intel 865G |
| Southbridge Chipset | Intel ICH5 |
| Memory Type | Dual Channel DDR |
| Memory Slots | 2 DDR DIMM slots |
| Maximum Memory Capacity | 2 GB |
| PCI Slots | 3 x PCI |
| AGP Slot | 1 x AGP (1.5 V, 8X/4X) |
| Integrated Graphics | Intel Extreme Graphics 2 |
| Audio Codec | Cmedia 9761A 5.1‑channel |
| LAN Controller | Realtek PCI LAN 8101L |
| Rear USB Ports | 7 USB 2.0 ports (plus additional header ports) |
It supports Microsoft Windows 98SE, Windows ME, Windows 2000, and Windows XP.
The board provides three standard PCI slots.
The maximum supported memory capacity is 2 GB.
