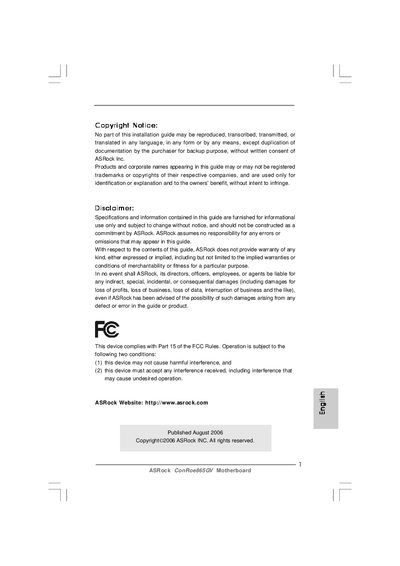

This installation guide introduces how to install and use the various features of the ASRock ConRoe865GV motherboard.
The guide introduces the ASRock ConRoe865GV motherboard, a Micro‑ATX board with an LGA775 socket and Intel 865GV northbridge. It lists the package contents, key specifications, connector layout, and BIOS features, and provides safety cautions for installation and over‑clocking.
It also includes a supported AGP VGA card list, step‑by‑step instructions for connecting SATA, IDE and power cables, and directions for installing drivers from the support CD. The document ends with BIOS configuration tips and a Spanish translation of the installation steps.
| Form Factor | Micro ATX (9.6‑in x 8.0‑in) |
|---|---|
| CPU Socket | LGA775 |
| Supported CPUs | Intel Core 2 Duo, Pentium Xe, Pentium D, Pentium 4, Celeron (Conroe family) |
| Front‑Side Bus (FSB) | 800 MHz / 533 MHz |
| Chipset | Northbridge Intel 865GV, Southbridge Intel ICH5 |
| Memory Slots | 2 DDR DIMM slots (Dual Channel) |
| Maximum Memory | 2 GB |
| Supported Memory Types | DDR400 / DDR333 / DDR266 |
| USB Ports (I/O panel) | 6 USB 2.0 ports |
| SATA Connectors | 2 x Serial ATA 1.5 Gb/s |
| IDE Connectors | 2 x ATA100 IDE connectors (support 4 IDE devices) |
It uses an LGA775 socket for Intel processors.
The board supports up to 2 GB of DDR memory.
There are six ready‑to‑use USB 2.0 ports on the I/O panel.
It is a Micro‑ATX board measuring 9.6 in × 8.0 in.
