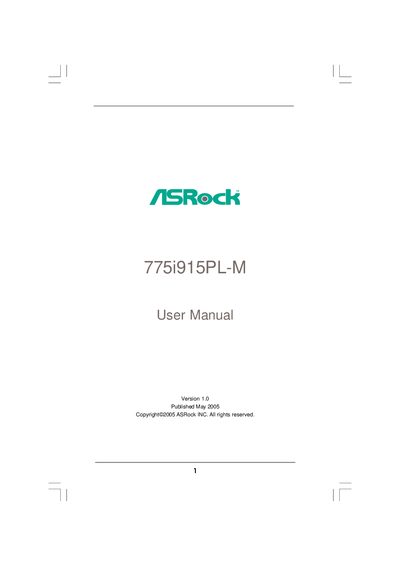

775i915PL-M User Manual
This manual introduces the ASRock 775i915PL-M motherboard, lists the package contents, and gives step‑by‑step instructions for installing the CPU, heatsink, memory modules, and other components. It also covers BIOS configuration, jumper settings, and how to use the Support CD for drivers and utilities.
Detailed specifications are provided, including chipset, memory support, expansion slots, and I/O connectors, along with safety cautions and FCC compliance information.
| Form Factor | Micro ATX (9.6‑in x 8.6‑in) |
|---|---|
| CPU Socket | 775‑Pin LGA supporting Intel Pentium 4 / Celeron |
| Chipset | Intel 915PL |
| South Bridge | Intel ICH6 (SATA 1.5 Gb/s) |
| SATA Ports | Supports up to 4 SATA devices at 1.5 Gb/s (no RAID/Hot‑Plug) |
| IDE Interface | ATA 100 Ultra DMA Mode 5, up to 2 IDE devices |
| USB 2.0 Ports | 8 ports (4 rear, headers for 4 additional) |
| LAN | 10/100 Ethernet with Wake‑On‑LAN |
| Audio | 7.1‑channel AC’97 |
It supports Microsoft Windows 98SE, ME, 2000, and XP.
The board provides eight USB 2.0 ports, four on the rear panel and headers for four additional ports.
It uses an LGA 775 (775‑Pin) socket that accepts Intel Pentium 4 and Celeron processors.
Yes, it supports up to four SATA devices at 1.5 Gb/s, but does not support RAID or hot‑plug functions.
