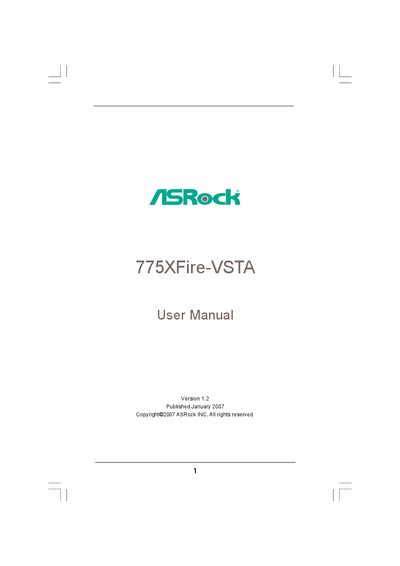

This document is the 11111 775XFire-VSTA User Manual Version 1.2 published by ASRock INC. It describes the features and characteristics of the product.
This manual covers everything needed to install and configure the ASRock 775XFire-VSTA motherboard, including package contents, hardware installation steps, BIOS setup, and software support. It also lists detailed specifications such as CPU support, memory configuration, expansion slots, and I/O ports.
Additional sections explain safety cautions, power management features, and how to use the Support CD for drivers and utilities. The document ends with BIOS exit options and contact information for further assistance.
| Form Factor | ATX 12.0-in x 8.6-in |
|---|---|
| CPU Socket | LGA775 for Intel Pentium 4 / Celeron D |
| Front Side Bus | 800/533 MHz |
| Northbridge Chipset | Intel 925X |
| Southbridge Chipset | Intel ICH6R |
| Memory Slots | 4 × DDRII DIMM |
| Maximum Memory | 4 GB |
| Audio Codec | Realtek ALC888 |
| LAN Controller | Realtek PCI LAN 8101L (10/100 Mbps, Wake‑On‑LAN) |
| SATA Connectors | 4 × Serial ATA 1.5 Gb/s (RAID, NCQ, AHCI, Hot Plug) |
| USB Ports | 4 × USB 2.0 (rear) + 2 × USB 2.0 headers |
The board supports Microsoft Windows 2000, Windows XP, Windows XP 64‑bit, Windows Vista and Windows Vista 64‑bit.
It provides four Serial ATA 1.5 Gb/s connectors that support RAID, NCQ, AHCI and hot‑plug functions.
The maximum supported memory is 4 GB.
The board follows the ATX form factor, measuring 12.0 in × 8.6 in (30.5 cm × 21.8 cm).
