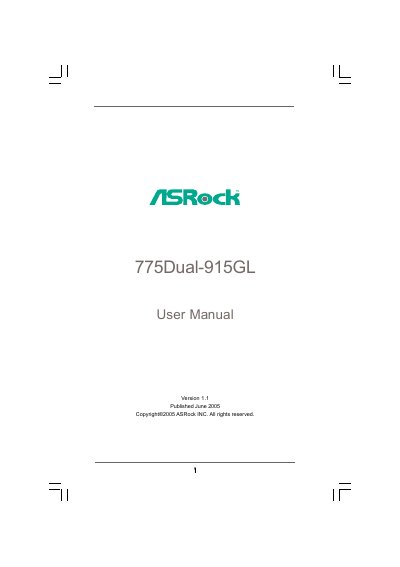

This document is the user manual for ASRock 775Dual-915GL motherboard. The manual includes detailed information, specifications, and features of the motherboard.
This manual introduces the ASRock Dual-915GL motherboard, covering package contents, hardware installation steps, and system configuration. It includes detailed guidance for CPU, memory, storage, and expansion slot installation, as well as safety cautions.
Later sections describe the BIOS setup utility, hardware health monitoring, and software support, including driver installation from the supplied support CD and supported operating systems (Windows 2000/XP). The document also lists compatible AGP and PCI‑Express graphics cards and provides contact information for further assistance. This manual is written in Chinese.
| Form Factor | Micro ATX 9.6" x 8.6" (24.4 cm x 21.8 cm) |
|---|---|
| CPU Socket | LGA 775 (Intel Pentium 4 / Celeron) |
| SATA Support | Up to 4 SATA devices at 1.5 Gb/s (no RAID, no Hot‑Plug) |
| USB Ports | 8 USB 2.0 ports (4 rear, 4 via headers) |
| Audio | 7.1‑channel AC’97 audio |
| LAN | 10/100 Mbps Ethernet, Wake‑On‑LAN support |
It uses an LGA 775 socket that supports Intel Pentium 4 and Celeron processors.
The board supports up to four SATA devices at 1.5 Gb/s.
The motherboard can hold a maximum of 2 GB of DDR memory.
It supports Microsoft Windows 2000 and Windows XP.
